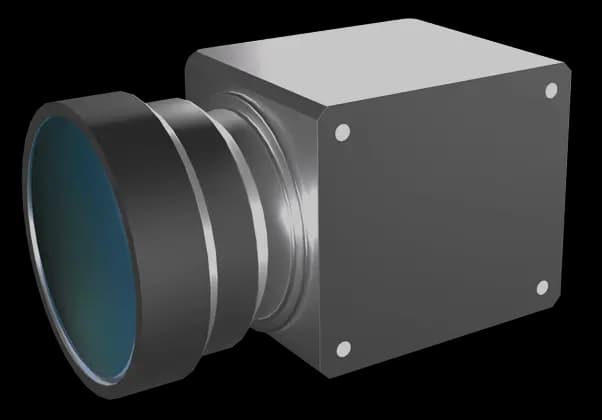

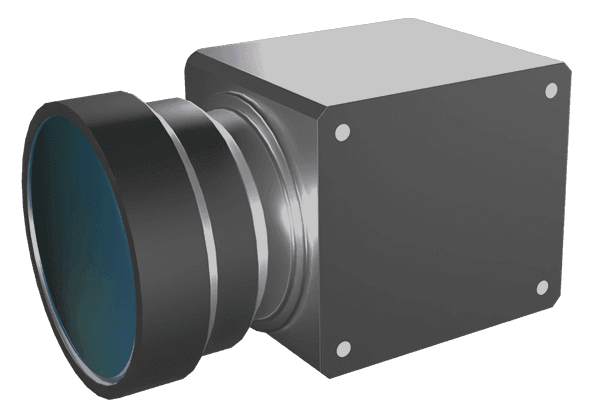

Star tracker

A compact, radiation-tolerant star tracker for micro and small satellites, seamlessly compatible with any third-party ADCS.

Star Tracker Star Tracker

Offering arcsecond-level accuracy, onboard processing, optimized optics, autonomous operation, star detection up to magnitude 6, and stray light management, it ensures precise and dependable orientation in even the most challenging orbital conditions

Specifications

Field of view
10° × 10°
Update Rate
5 Hz
Dimensions
95 mm x 85 mm x 85 mm
Star Detection
Up to magnitude 6.0
Pointing Accuracy
~16 arcseconds
Sun Exclusion Angle
30°
Interface
RS422 & LVDS
Mass
325 g
Power
<5 W
Sensor
Radiation-tolerant CMOS
Processing
QUEST & Lost-in-Space
TRL
5
